Miner container, American UL accessories certification, high power, cost-effective!

1.6MW high power, 432 seats, assembled mine box, simple construction and installation, cheap transportation, installment payment available

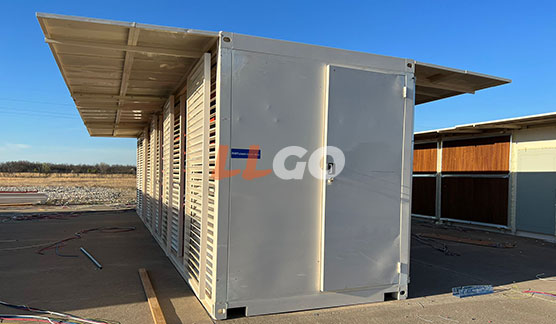

Miner Container-1.6MW (432 seats)

size 11950*2300*2980

432 S19 seats (multi-camera)

1600KVA (high power)

All UL certified accessories (can buy American property insurance

Delivery in USA (including strong and weak current assembly and testing)

spot price$98,000 40-day futures price$80,000
Buy now

Miner Container-1.6MW (432 Seats)

40-foot mobile miner container quotation

Project name: 40 feet American standard mobile miner container
Serial Number Name Model Specifications Units Quantity Notes
One Cabinet 11950*2300*2980 Sets 1

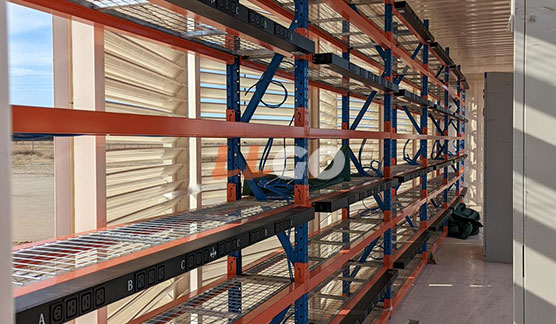

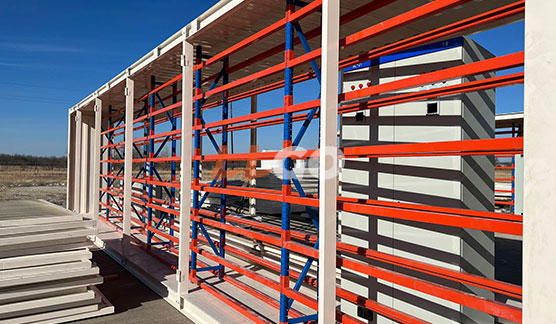

Cabinet configuration Rack 2000*380*2890*8 layers Group 6

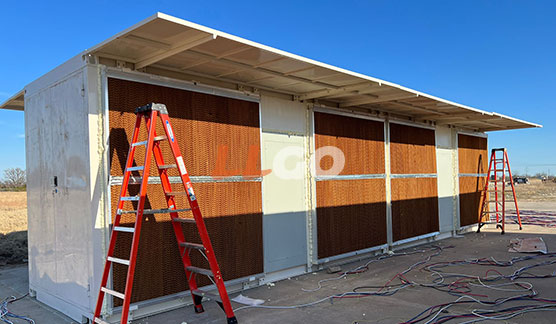

Water Curtain 27

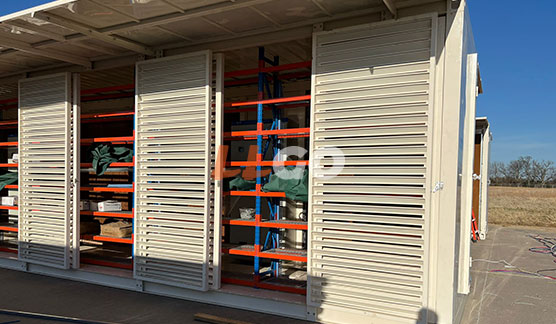

Open shutters freely 1370*2730 36
Safe escape door door frame 1
Safe escape lock put 1
Hot and cold insulation cloth Fireproof cloth square meters 32

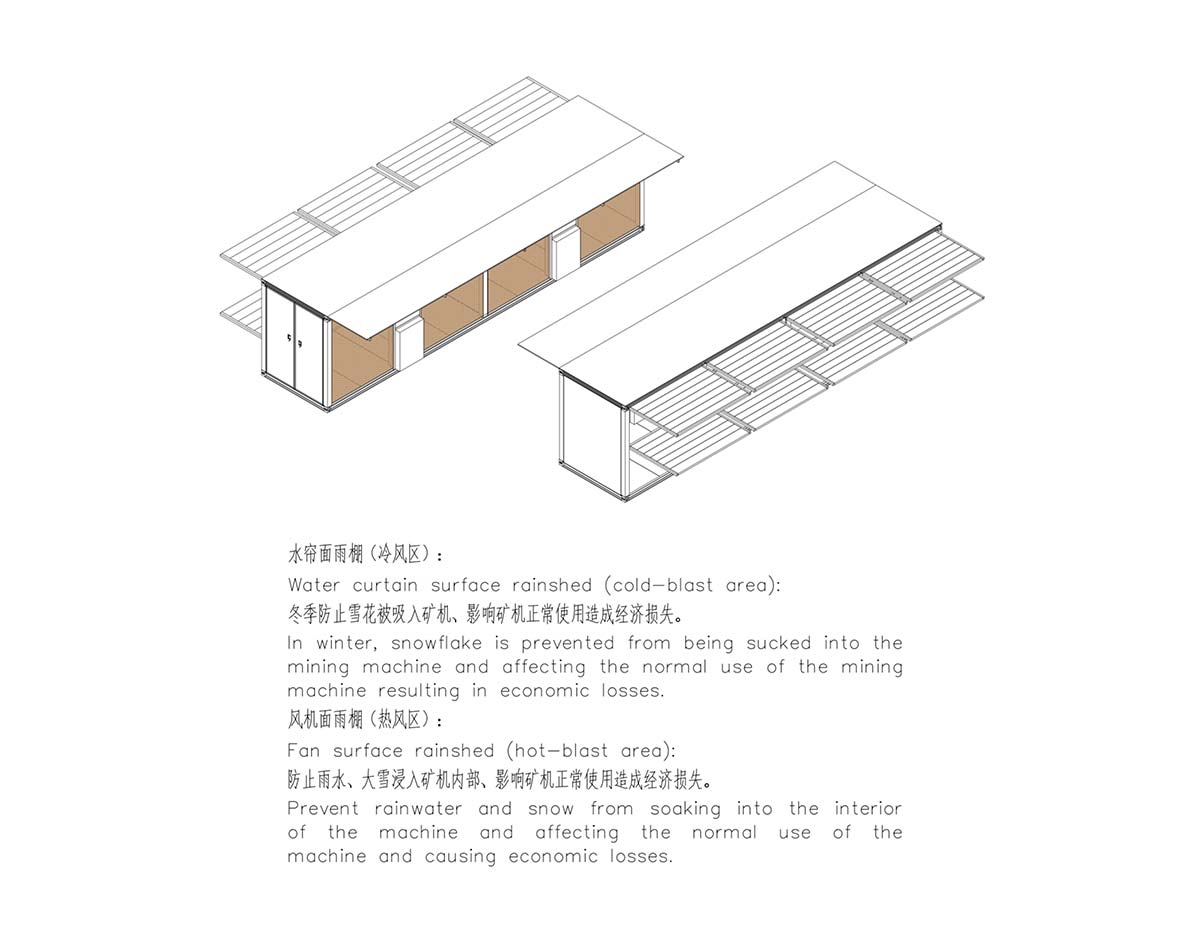

Miner Container Canopy Hot Air Area 1 face
Water Curtain 1 face

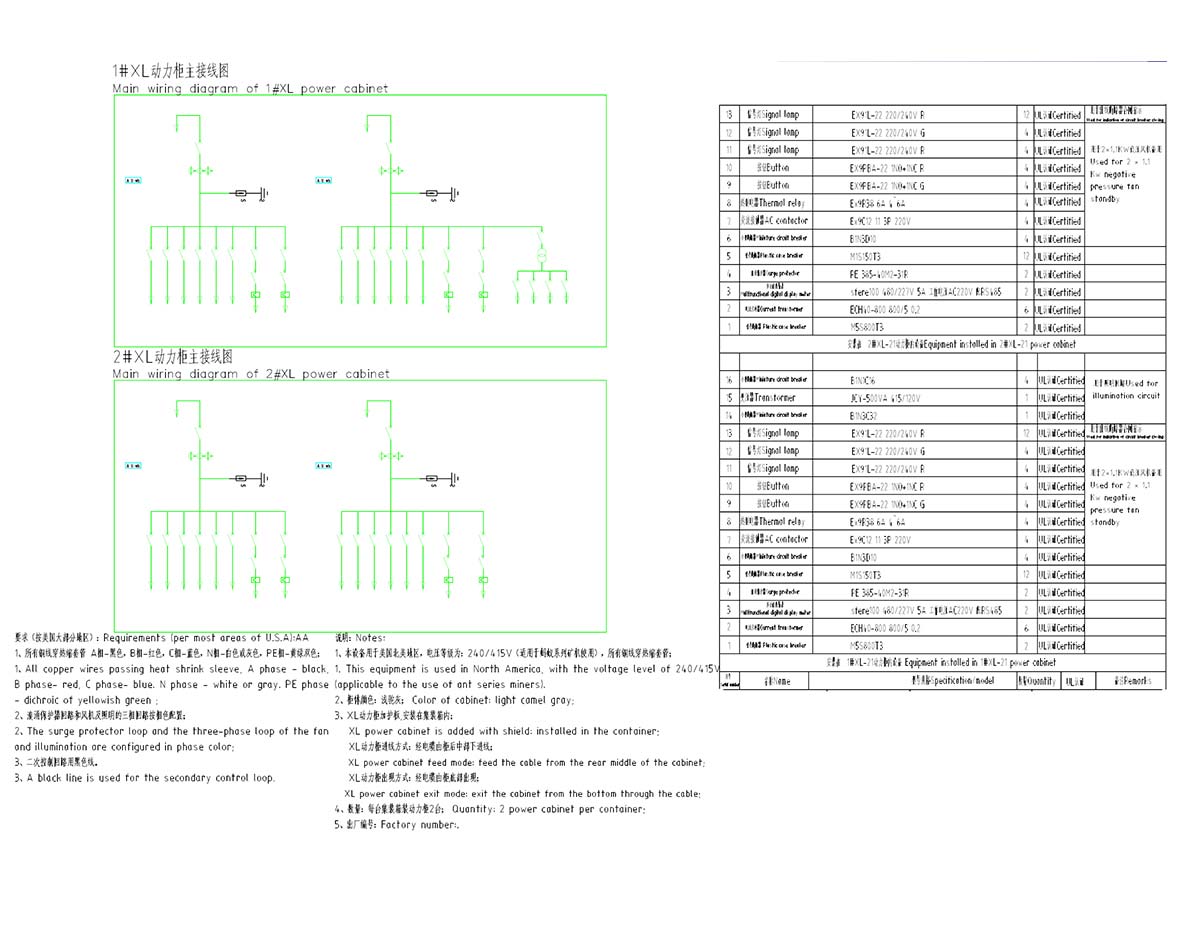

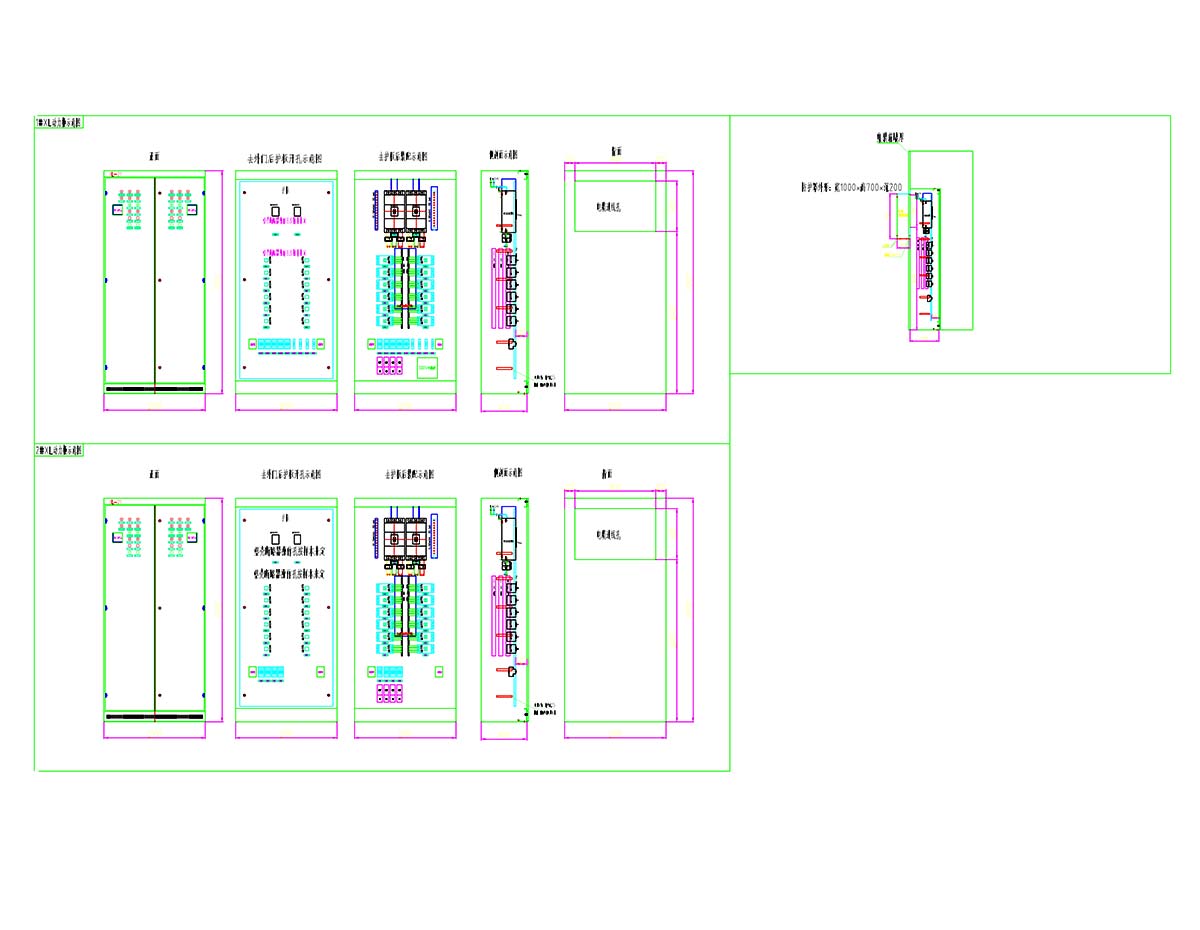

Electrical configuration list
Serial Number Name Model Specifications Units Quantity Brand Certification
1#XL-21
Power Cabinet
MCCB M5S800T3 only 2 Nojak UL
Current Transformer ECH60-800 800/5 0.2 only 6 Yichuang Electronics UL
Three-phase multi-function digital display meter sfere100 415/240V 5A only 2 Spell UL
Surge Protector PE385-40M2-31R only 2 PTG UL
MCCB M1S150T3 only 12 Nojak UL
Signal light Ex9IL-22 Red 220V only 12 Nojak UL
Miniature Circuit Breakers B1N3C32 (Control Autotransformer) only 1 Nojak UL
Autotransformer JCY-500VA 415/120V only 1 Jiuchuan UL
Miniature Circuit Breakers B1N1C16 (control monitor, computer, etc.) only 2 Nojak UL
Power Cabinet 1000*450*2200 pieces 1 Wada
Main copper bar TMY-3(40x8)+2(40*10) kg 46 Wada
Copper barTMY-15x3 kg 4.80 Wada
Primary cable BV- Item 1 Easy Beginning UL
Secondary cable BVR-2.5mm², 1mm² Item 1 Easy Beginning UL
Accessories Taiwan 1
In-cabinet electrical assembly fee Taiwan 1
Control Cabinet 1# Taiwan 1
2#XL-21
Power Cabinet
MCCB M5S800T3 only 2 Nojak UL
Current Transformer ECH60-800 800/5 0.2 only 6 Yichuang Electronics UL
Three-phase multi-function digital display meter sfere100 415/240V 5A only 2 Spell UL
Surge Protector PE385-40M2-31R only 2 PTG UL
MCCB M1S150T3 only 12 Nojak UL
Signal light Ex9IL1H4 Red 220V only 12 Nojak UL
Power Cabinet 1000*450*2200 pieces 1 Wada
Main copper bar TMY-3(40x8)+2(40*10) kg 46 Wada
Copper bar TMY-15x3 kg 4.80 Wada
Primary cable BV- Item 1 Easy Beginning UL
Secondary cable BVR-2.5mm², 1mm² Item 1 Easy Beginning UL
Accessories Taiwan 1
In-cabinet electrical assembly fee Taiwan 1
Control Cabinet 2#
Other PDU Socket Long 1800, 20-position sockets are powered on both ends only 24 Wada
Strip Switch Length 1800 22 Ports only 24 Wada
Cable red UL1015/5AWG meter 320 Easy Beginning UL
Cable blue UL1015/5AWG meter 320 Easy Beginning UL
Cable White UL1015/5AWG meter 320 Easy Beginning UL
Cable black UL1015/5AWG meter 320 Easy Beginning UL
Ground Wire 2.5 sq. meter 320 Easy Beginning UL
Line nose pieces 96 Yueqing
LED Smart Lights 120V Rechargeable Ceiling Light pieces 6 LED
Network cable root 432 Connectivity
Cable trunking meter 12 Yueqing
Pre-Assembled Testing test Item 1
Consumables Solder, wire noses, heat shrink sleeves, etc. Sets 1
Loading and Transshipment Sets 1
Planned Profit Sets 1
Issue a 13% VAT invoice, and the tax rate is charged at 7%
View more click to hide more

Industry comparative advantage

1600 Ore Box Other ore boxes
Easy construction Can be disassembled and assembled without crane operation, and can be assembled freely The container is remodeled and cannot be disassembled and assembled. A large crane is required for on-site work.
Low shipping costs Save shipping, 4 boxes can be disassembled into a container for transportation, and the cost of transportation is only 1/4 Can only be charged per box
Indoor Convenience Can be disassembled and assembled indoors Cannot enter indoors
Low average price 1.6MW, 432 units can be powered on at the same time 1.2MW, only 348 units can be powered on
High completion level All strong and weak electricity completed Complete only heavy electricity projects
Certification All fits are UL North America certified Partially certified or not certified
Insurance All accessories are certified by UL, and you can buy insurance through insurance certification Cannot be insured
Payment Methods Available in installments No installments, full payment required

Strength Analysis

In the global epidemic, mine infrastructure projects are very slow. Now the flexibility, low
                        cost, fast speed, maintenance and operation of containers have brought great changes to the
                        industry!

In the global epidemic, mine infrastructure projects are very slow. Now the flexibility, low cost, fast speed, maintenance and operation of containers have brought great changes to the industry!

Containers can be combined with liquid-cooled mining, industrial computing mining, natural gas
                        power mining, and small factory power mining, all of which are places where containers can be
                        powered on directly!

Containers can be combined with liquid-cooled mining, industrial computing mining, natural gas power mining, and small factory power mining, all of which are places where containers can be powered on directly!

Container mines will be a very important mainstream market in the mining industry!

Container mines will be a very important mainstream market in the mining industry!

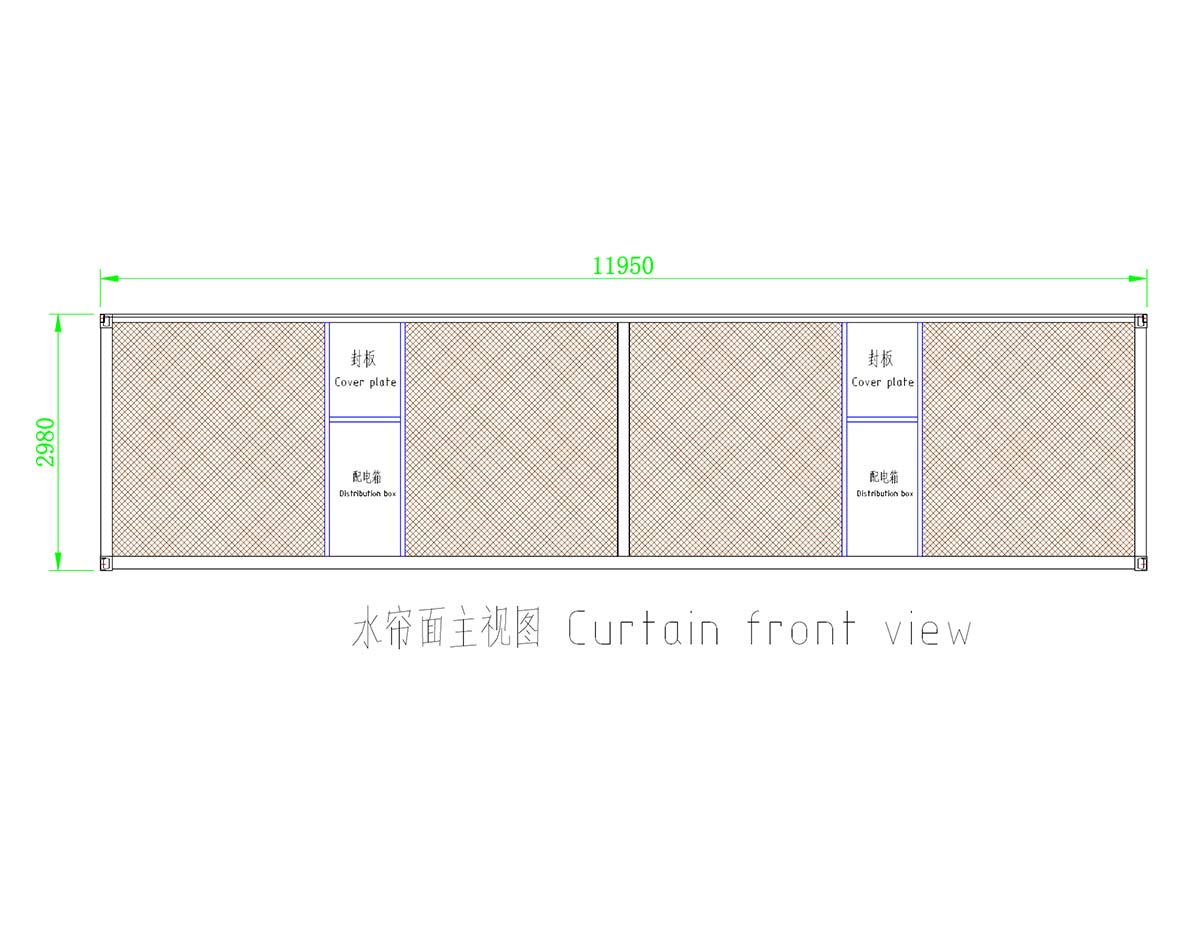

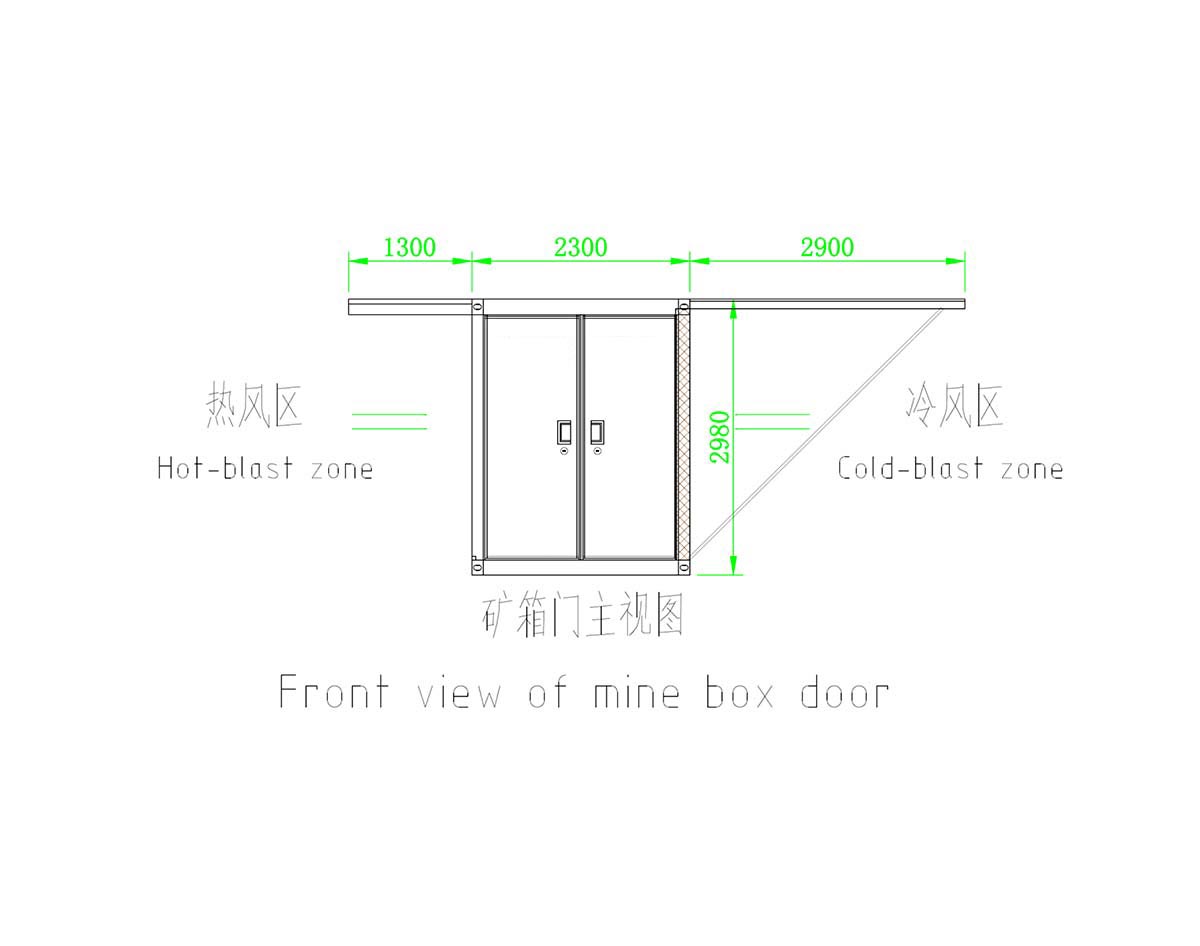

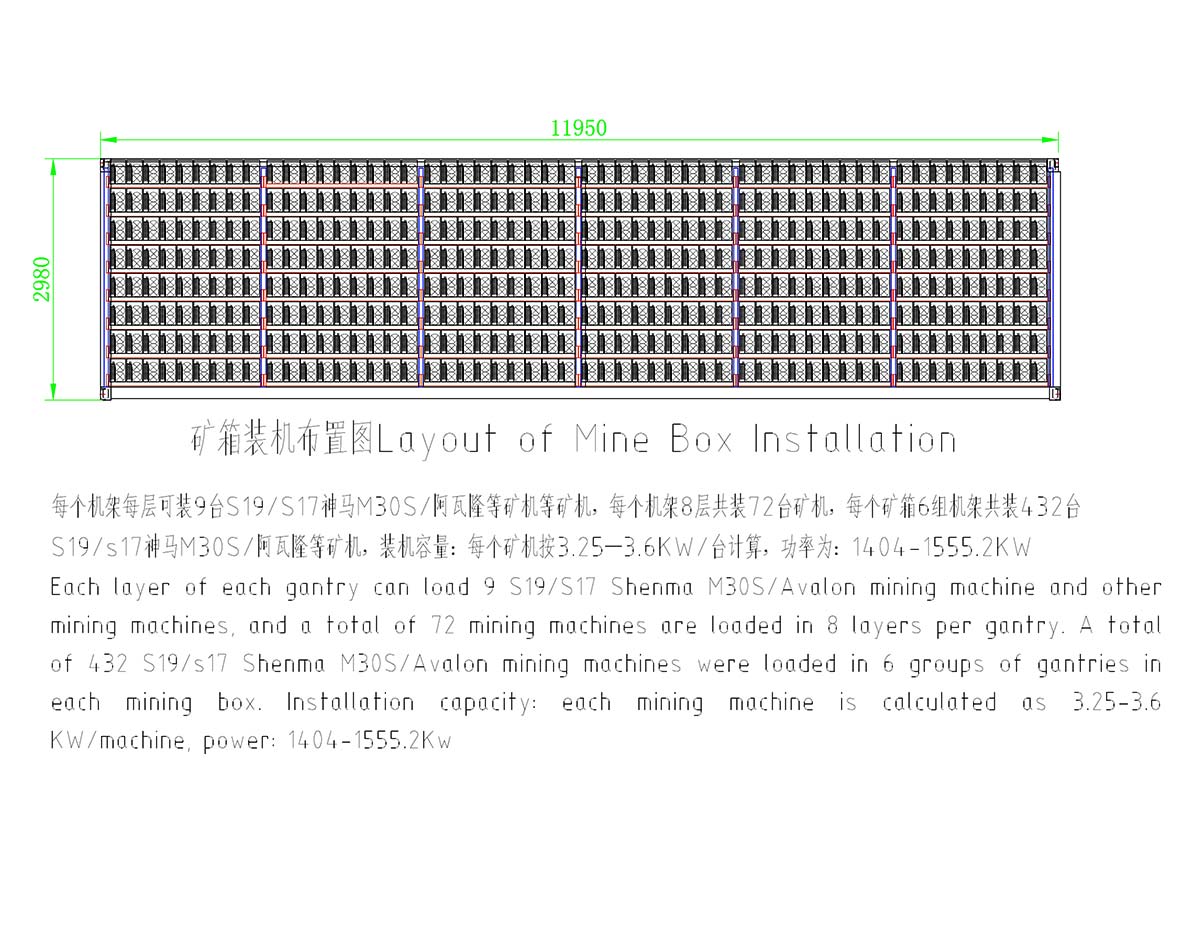

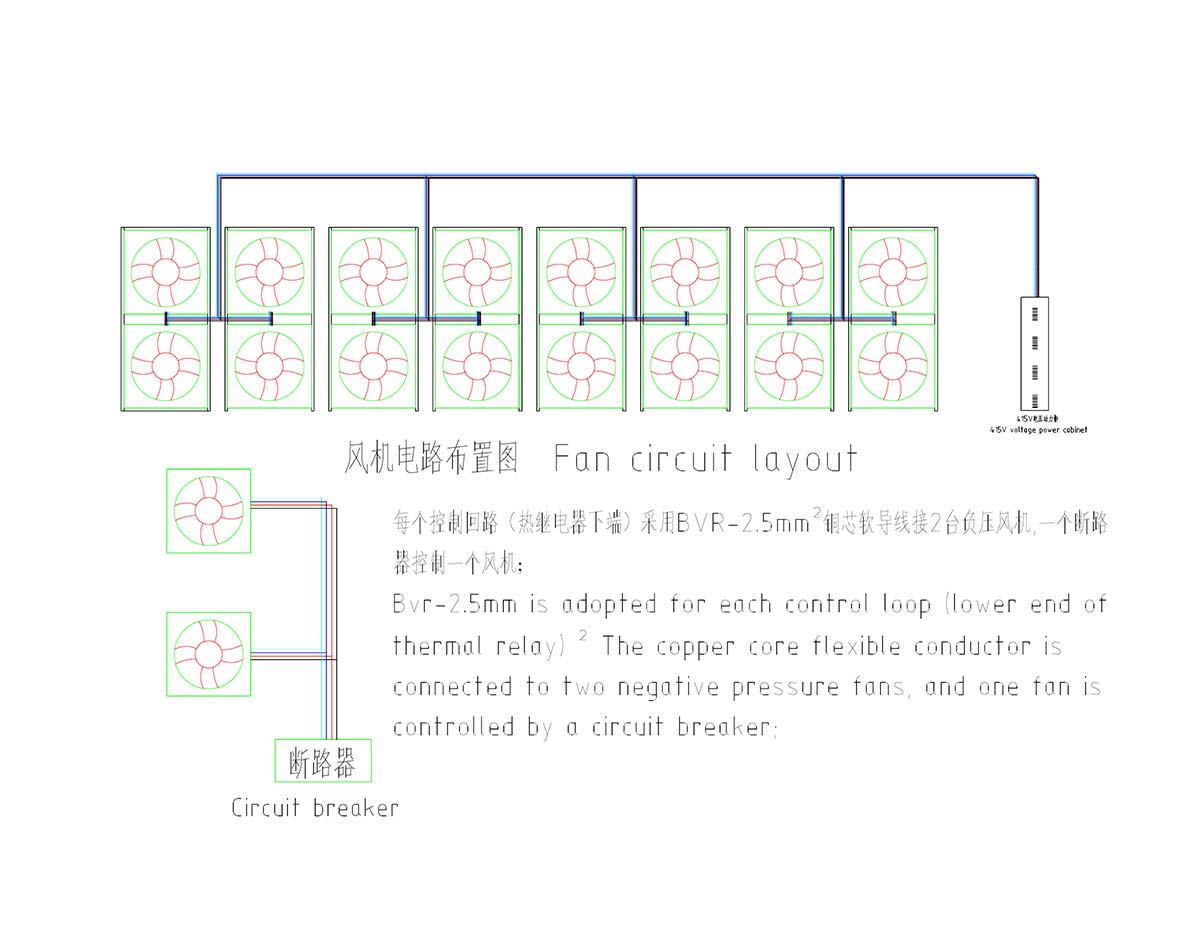

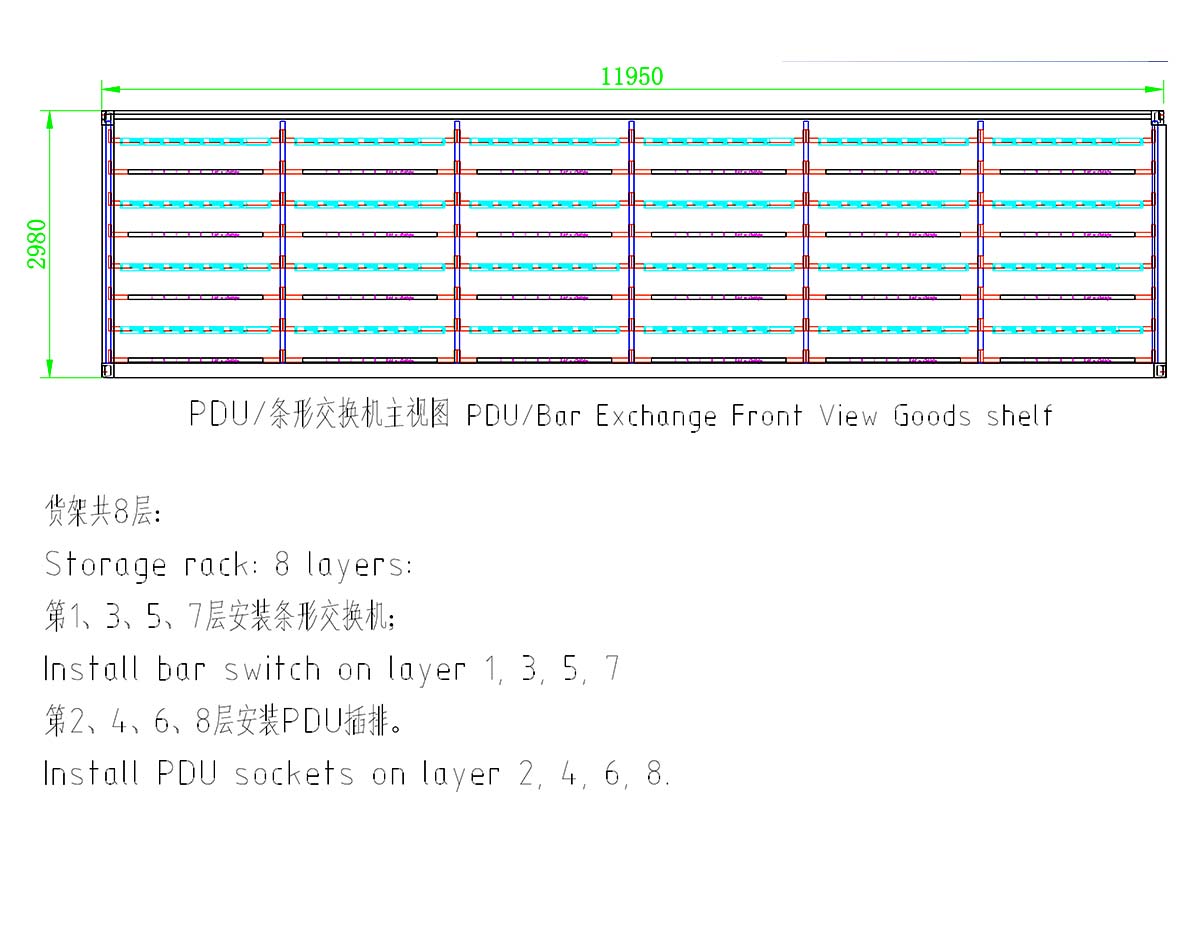

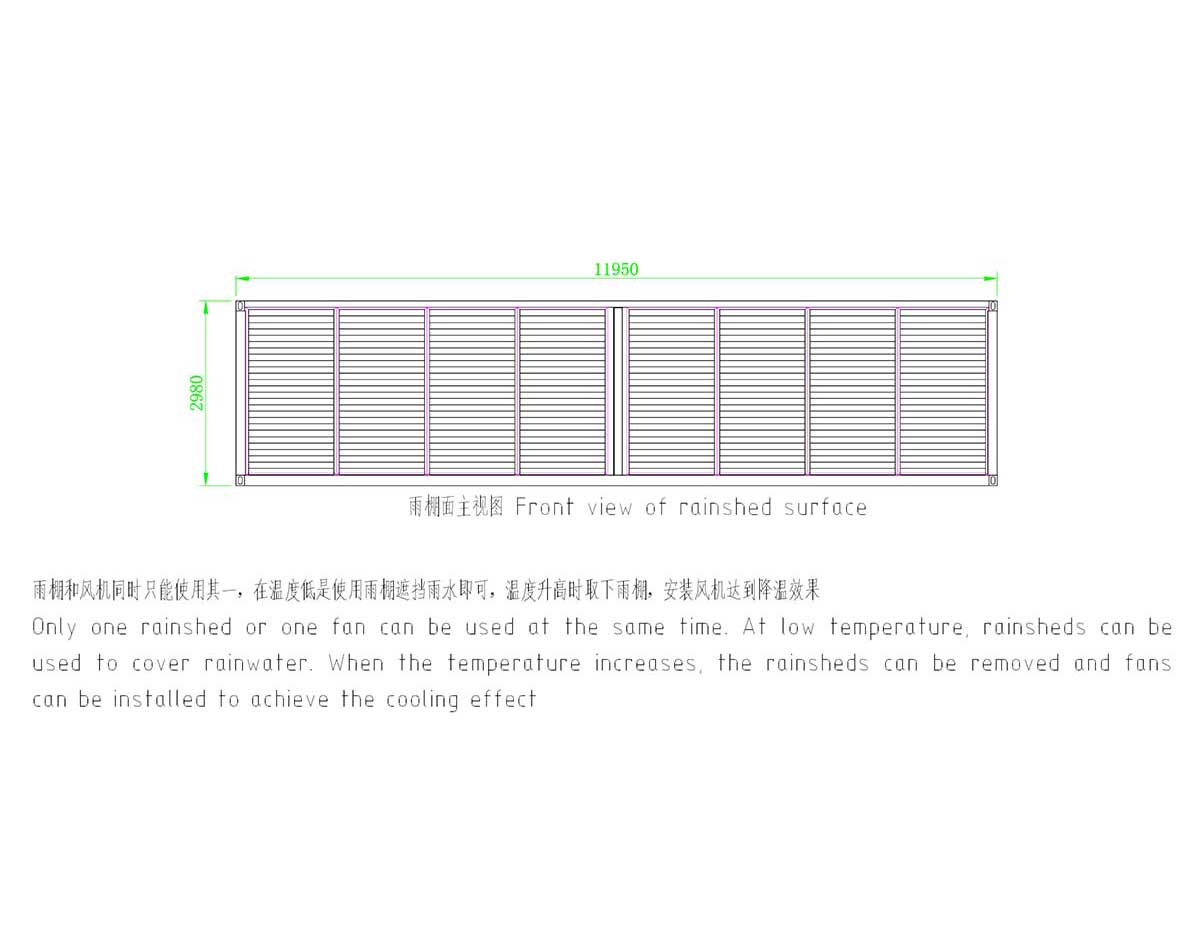

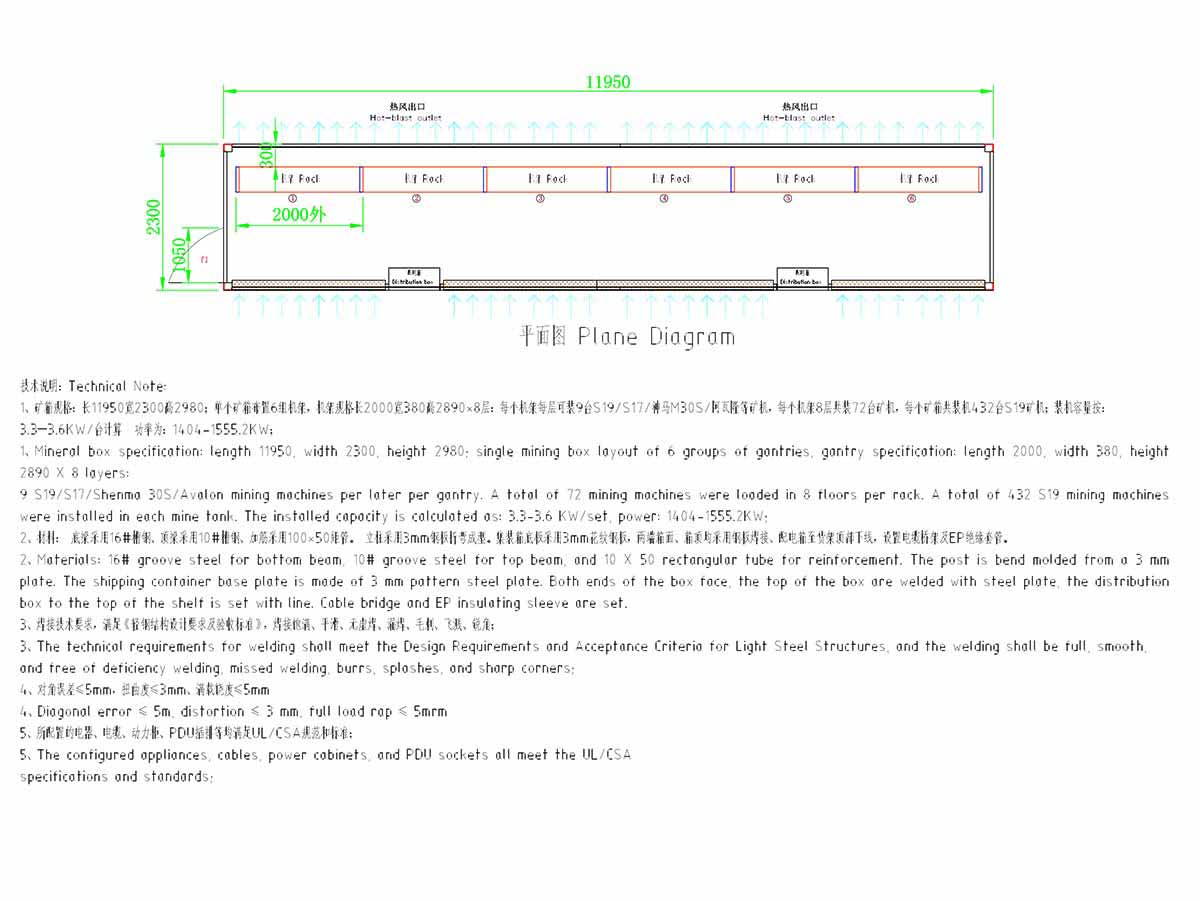

Large 40-foot miner container plan shipping standard plan

Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)
Miner Container-1.6MW (432 Seats)

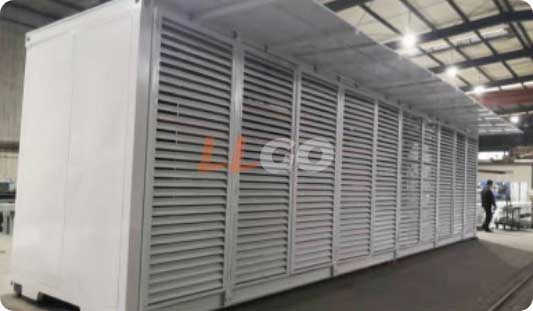

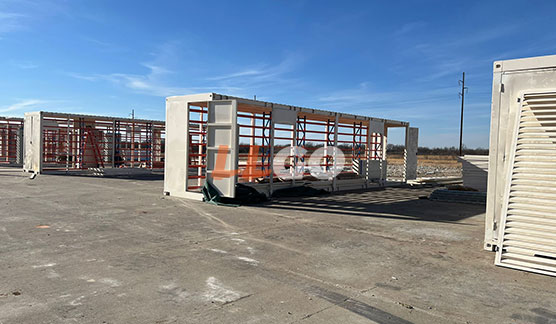

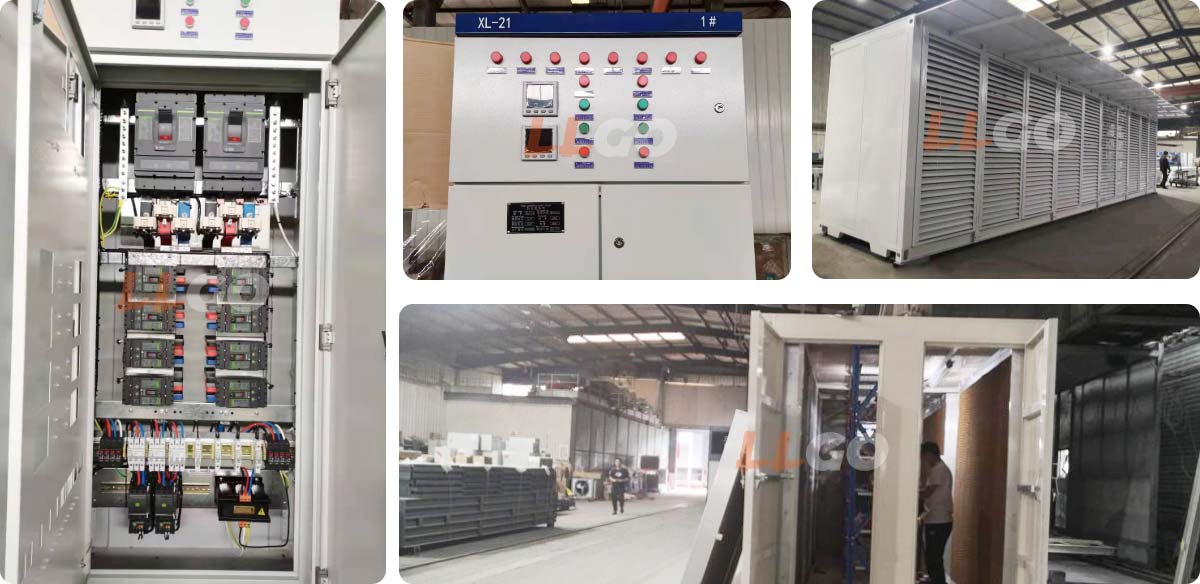

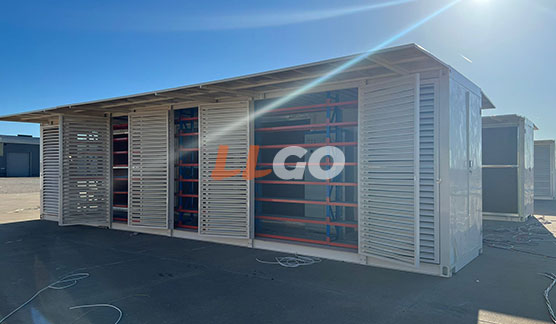

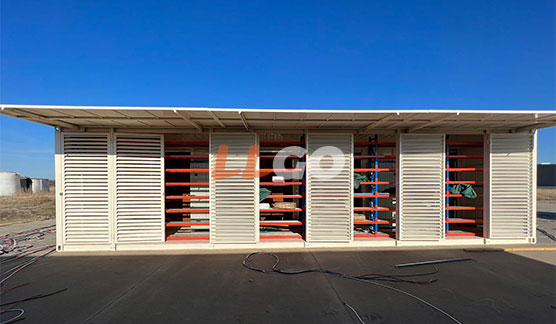

Miner Container Production Atlas

Miner Container Production Atlas

Miner Container installation video

Buy now
