How much power does the Bitmain Antminer S17+ use?

2022-10-28 10:56

Bitmain Antminer S17+ 76Th is a miner released in 2019. According to different hash rates, Bitmain Antminer S17+ is divided into 76Th, 73Th, 70Th, 67Th, 64Th versions. Bitmain Antminer S17+ 76Th is the highest version model in the series, let's see how it performs?

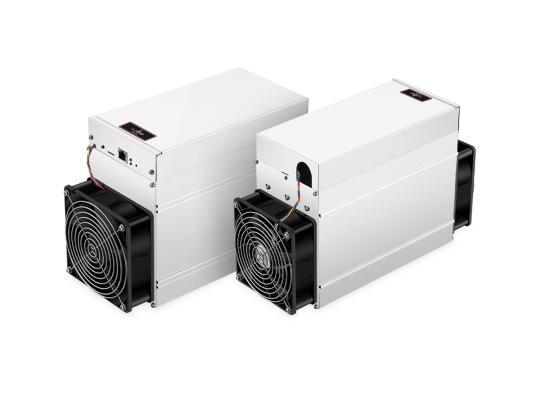

Bitmain Antminer S17+ 76Th Styling Design

The Bitmain Antminer S17+ 76Th adopts the integrated design of the whole machine with ultra-high integration, and the placement method can be freely selected according to the size of the rack, so as to adapt to different rack sizes, choose upright or lay down.

However, the Bitmain Antminer S17+ 76Th no longer uses a one-piece die-casting structure, but is divided into two parts, which are formed separately on both sides, and then connected together through the card slot. Such a structure causes the miner to be slightly inclined due to the protrusion in the middle when the miner is laid flat. When mining with Bitmain Antminer S17+ 76Th, if the mining machine is tilted, you can use the self-adhesive spacer ant provided by the manufacturer to level it.

The Bitmain Antminer S17+ 76Th adopts a fully wrapped body design, so that the machine cable is not exposed. Due to the change of the chassis, the control board is separated from the power supply, so that an additional shell is installed at the position of the power connection piece, and the shell is fixed with snaps and screws. The Bitmain Antminer S17+ 76Th uses 4 fans in parallel to provide heat dissipation, and also uses the form of snaps and screws to fix the case with the case.

The manufacturer, Bitmain, said that the Bitmain Antminer S17+ 76Th adopts a deeply customized and optimized heat dissipation design scheme, and reduces losses through fine temperature control, making the mining machine run more efficiently and stably. It should be noted that the current of the miner's air inlet and air outlet fans is inconsistent. The air inlet current is 2.7A, while the air outlet fan current is 3.14A, which should also be part of its heat dissipation design.

Bitmain Antminer S17+ 76Th Specifications

specification
Version:S17+
Model266-Aa
Encryption algorithmSHA256
CurrencyBTC/BCH
Rated computing power76TH/S
Energy efficiency ratio40.00J/T+10% (25℃ ambient temperature, J/TH)

Bitmain Antminer S17+ 76Th has a net weight of 9.8KG, a size of 298*178*304mm, and adopts SHA-256 algorithm. The maximum computing power of the device is 76Th/s, and the power consumption is 2920w.

Like most other Antminer S17+ series, Bitmain Antminer S17+ 76Th has a noise level of 75db. This means that the Bitmain Antminer S17+ 76Th is not suitable for home mining and needs to be placed in a professional mining site.

Bitmain Antminer S17+ 76Th is equipped with a power supply model APW9+, which provides 12.3V, 14.5V-21V DC voltage, rated power of 3600W, and maximum rated current of 170A. As a reminder, Bitmain Antminer S17+ 76Th is not equipped with a power cord when it leaves the factory, so if you want to install Bitmain Antminer S17+ 76Th for mining, you need to prepare 2 power cords in advance, and the miner will only start after both power cords are connected. .



The Bitmain Antminer S17+ 76Th used to be a popular Bitcoin miner, but with the increasing difficulty of Bitcoin mining, the Bitmain Antminer S17+ 76Th has become obsolete.

According to the current Bitcoin price, the benefits of mining with Bitmain Antminer S17+ 76Th cannot cover the cost of electricity. Therefore, mining with Bitmain Antminer S17+ 76Th is not profitable at present.

Frequently Asked Questions

Q1:Which Antminer has the highest computing power?

A1:The current Antminer with the highest computing power is the Bitmain Antminer S19 XP Hyd 255 Th, which has a maximum hash rate of 255 Th/s and a powerful maximum power consumption of 5304W. Its profitability is self-evident. The miner has one of the lowest noise levels among Bitcoin miners at just 50 decibels.

Q2:Is Antminer worth buying?

A2:At present, Antminer is still the Bitcoin mining machine with the largest computing power on the market, and it is an excellent choice for professional mining investors. The computing power of Antminers is often ahead of its peers, and even in difficult mining environments, it can provide mining investors with considerable returns.

Q3:What is the lifespan of an Antminer?

A3:The designed service life of the mining machine is generally about five years, but the income of the mining machine is closely related to the price of bitcoin. If the price of bitcoin is too low, the mining income of the mining machine cannot cover the cost of electricity, and it can only be forced to shut down. Under normal circumstances, the service life of an ant mining machine is three years. If the price of Bitcoin is relatively stable, it may be delayed to about six years.

Q4:How many bitcoins are left?

A4:The total number of bitcoins is 21 million, and 90% of them have been mined, which means that the remaining bitcoin stock to be mined is about 10%, and more than 1.8 million bitcoins are left for mining. The last bitcoin is expected to be mined. Will be mined in 2140.

Q5:Will mining still be profitable in 2022?

A5:Mining cryptocurrencies in 2022 will certainly be profitable, but it will be harder than in 2020 or 2021, because the price of bitcoin has fallen sharply, and at the same time, the difficulty of mining bitcoin has risen. Mining in 2022 is profitable, but there are certain difficulties.
